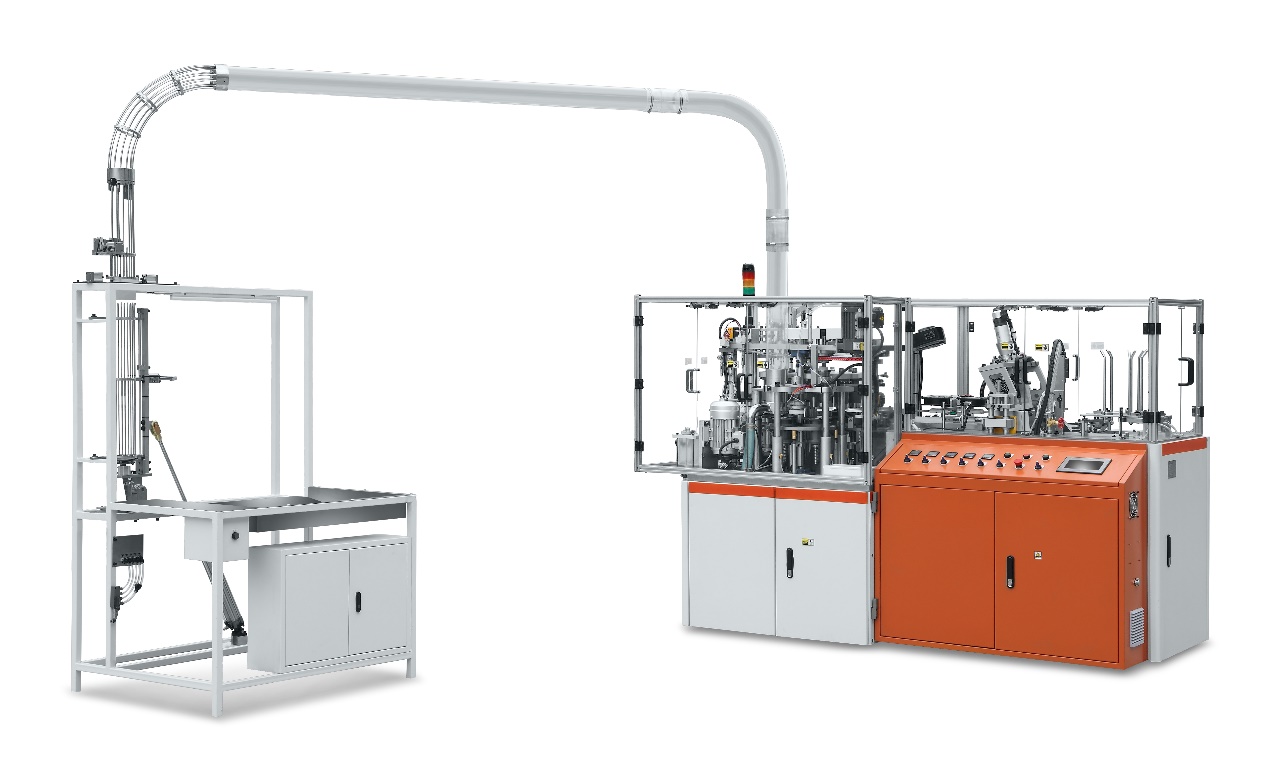

ZSJ-III Automatic Medium Speed Paper cup Forming Machine
Application
ZSJ-III is designed to make single side & double sides PE coated paper cups for cold and hot drinking cups as well as food containers.
| Technical Parameters | |
|
Cup Size |
2-16OZ |
|
Speed |
90-110pcs/min |
|
Machine N.W. |
3500kg |
|
Power Supply |
380V |
|
Rated Power |
20.6kw |
|
Air consumption |
0.4m3/min |
|
Machine Size |
L2440*W1625*H1600mm |
|
Paper Gram |
210-350gsm |
| Technical Parameters | |
|
Speed |
240pcs/min |
|
Machine N.W. |
600kg |
|
Power Supply |
380V |
|
Rated Power |
3.8kw |
|
Air consumption |
0.1m3/min |
|
Machine Size |
L1760*W660*H1700mm |
|

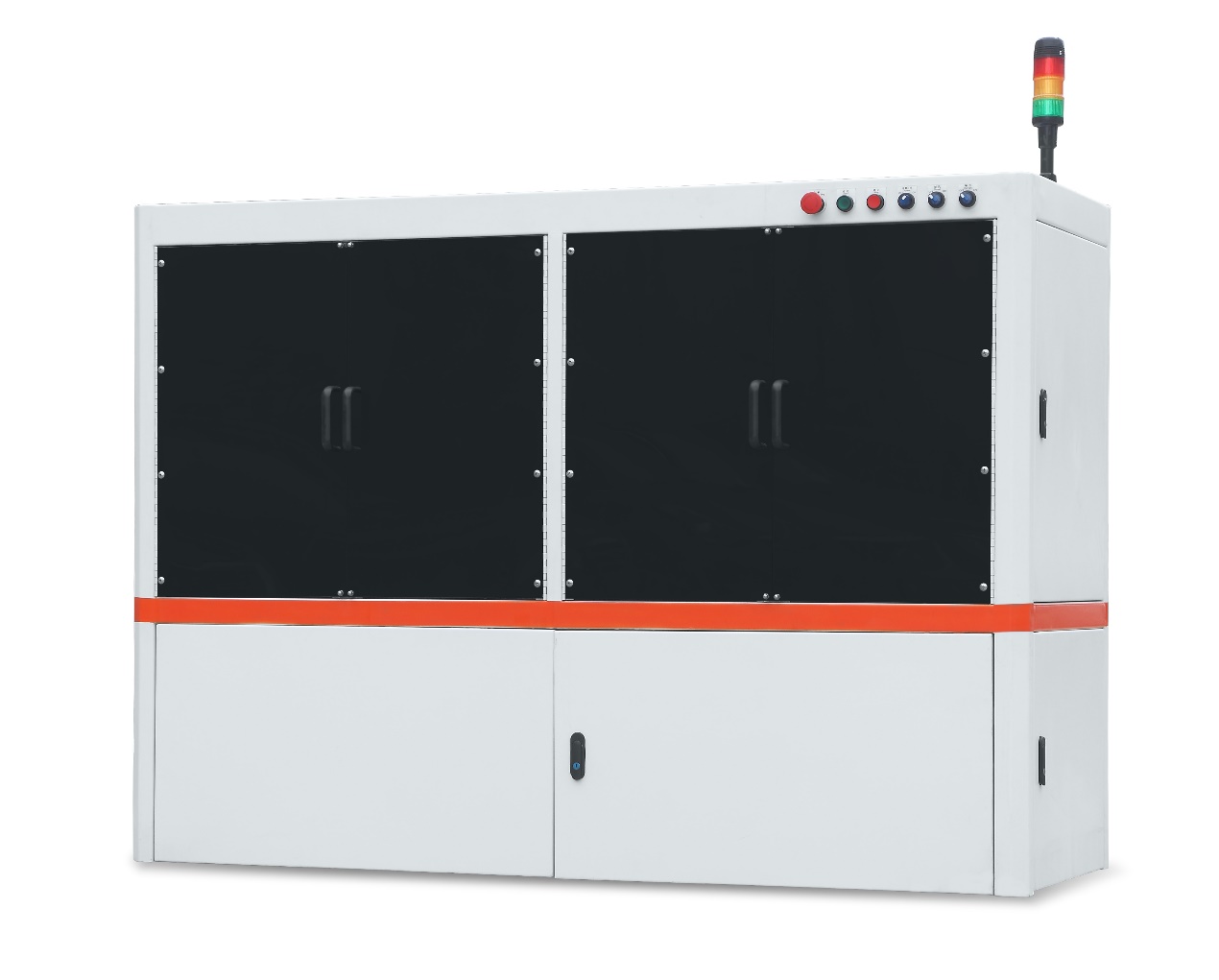

Testing position |
Cup rim, cup inner side, inner side & outer side of cup bottom, |
|
Test content |
Cracking, revolute, deformation, breakage, dirty spots. |
| Technical Parameters | |
|
Packing speed |
15bags/min |
|
Packing in diameter |
90-150mm |
|
Packing in length |
350-700mm |
|
Power Supply |
380V |
|
Rated Power |
4.5kw |
|
Air consumption |
0.1m3/min |
|
Machine Size |
L2000*W1130*H1870mm |
|
Machine weight |
800kg |
